Testing Tool

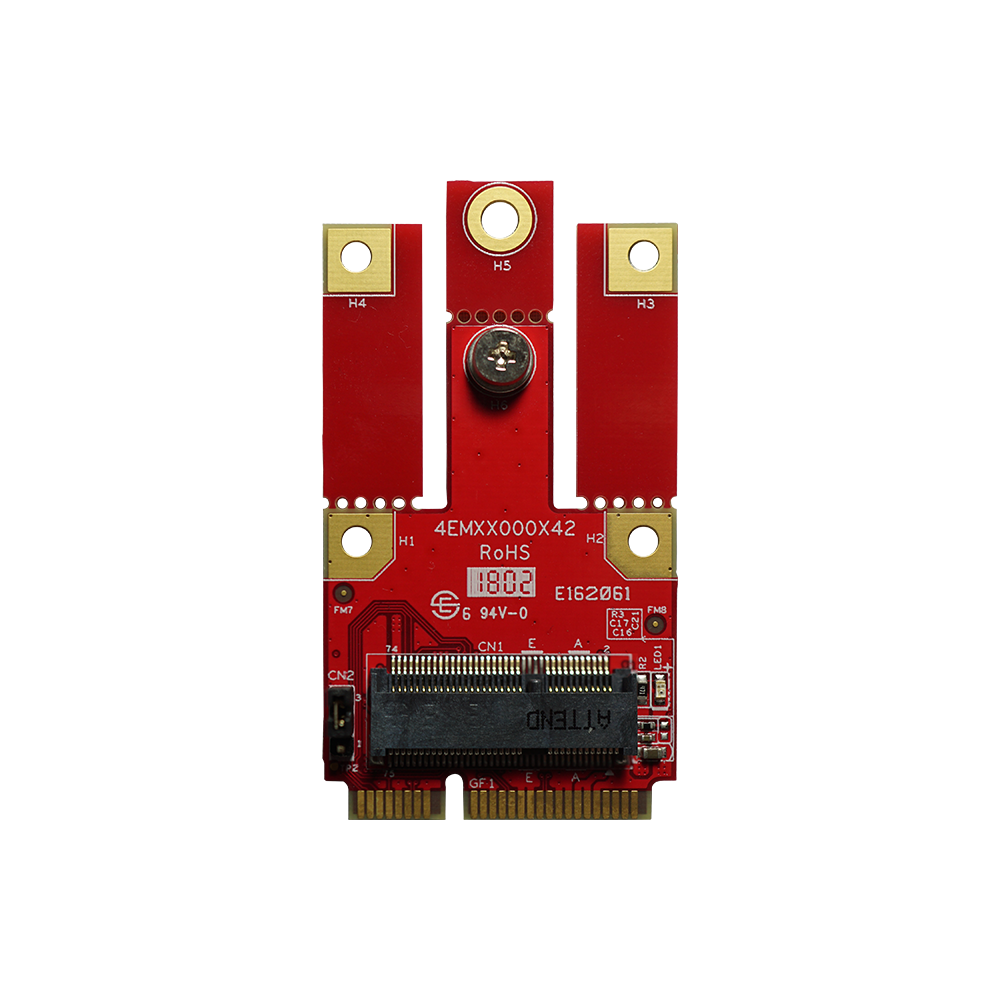

mPCIe to M.2 A+E Key Module
EMXX-0101
Features
- Compliant with PCI Express Base Specification
- Compliant with Universal Serial Bus 2.0 Specification
- Supports M.2 A+E Key wireless module such as 3G, 4G, WLAN, WWAN, Bluetooth
- Supports M.2 2230 / 2242 form factor
- Supports M.2 PCIe Lane 0 & Lane 1 by pin header setting
- Supports operating temperature from -40°C to 85°C
The EMXX-0101 is a PCIe expansion module compliant with PCIe and USB 2.0 specifications. It supports M.2 A+E Key wireless modules, including 3G, 4G, WLAN, WWAN, and Bluetooth, and is compatible with M.2 2230/2242 form factors. It also supports M.2 PCIe Lane 0 & Lane 1 through pin header settings. Designed for industrial environments, it operates in temperatures ranging from -40ºC to 85ºC.
IMPLEMENTED WITH SUCCESS IN DYNAMIC ENVIRONMENTS
EDGE SERVER
Designed for edge computing, our products ensure stable performance in harsh conditions, supporting real-time data processing at the edge device.
DATA CENTER
Driving the backbone of modern computing, our solutions deliver high performance and reliability for data-intensive operations.
TRANSPORTATION
Our solutions enhance operations, management, and security for EVs, buses, subways, and more.
INDUSTRIAL / EMBEDDED
Designed for harsh environments, our products offer high durability to meet the demands of industrial automation and embedded systems.
SURVEILLANCE & SAFETY
Our solutions deliver advanced analytics and instant response for modern surveillance needs.
AUTOMATION
Enhancing efficiency in automated systems, our products provide precise data management and long-lasting performance in industrial applications.
规格表
| Model Name | EMXX-0101 |
|---|---|
| Module Type | mPCIe to M.2 A+E Key Module |
| Form Factor | mPCIe |
| Function | Testing Tool |
| Input I/F | PCI Express 1.0 x1, USB 2.0 |
| Output I/F | PCI Express 1.0 x1, USB 2.0 |
| Output Port | 1 |
| Output Connector | M.2 A+E Key |
| Max. Power Consumption | -- |
| Dimension (W x L x H/mm) | 30 x 54.4 x 8.15 |
| Temperature | Operation : W/T -40°C ~ 85°C (Ta) Storage : -55°C ~ 95°C (Ta) |
| Vibration | 5G@[7~2000Hz] |
| Shock | 50G@0.5ms |
| OS Support | -- |
| Warranty | 3 Years |
| Notes | -- |
产品料号
| P/N | Description |
| EMXX-0101-W1 | mPCIe to M.2 A Key Module / Wide Temperature |
| EMXX-0101-W2 | mPCIe to M.2 E Key Module / Wide Temperature |
